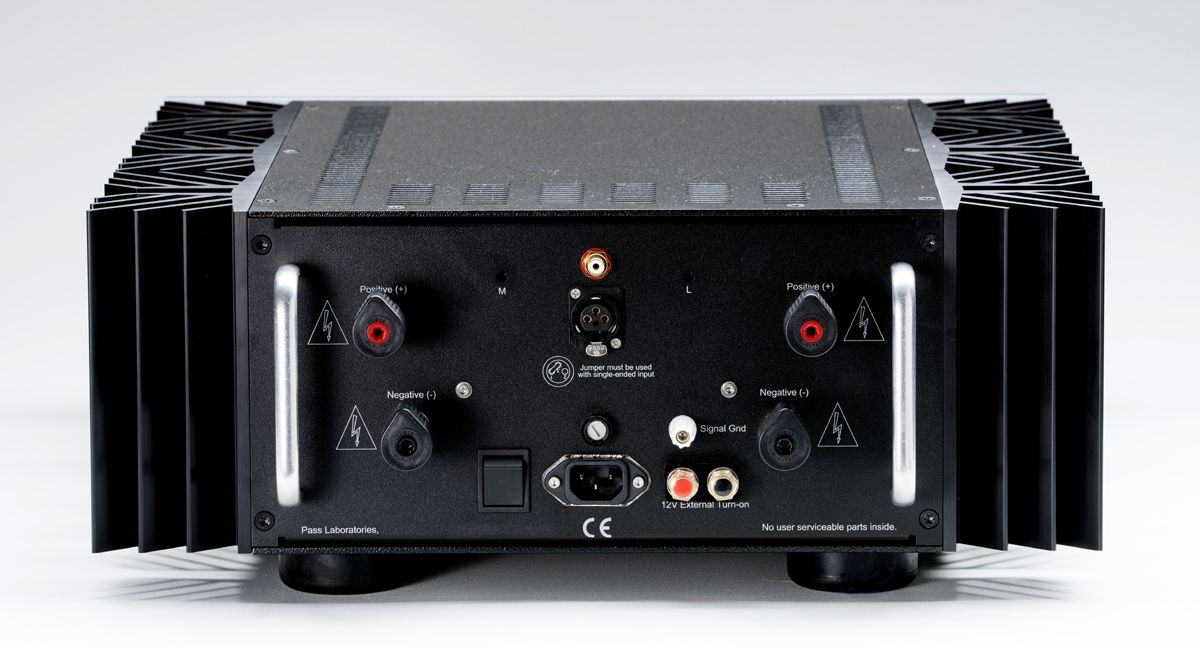

PASS X 260.8 AC Endstufe

260 Watt Monoendstufe

Technische Daten:

• Class: AB
• Type: Mono
• Gain (dB): 26
• Full Pwr @ 26 dB gain (V): 2.2
• Low Frequency Response: 1.5 Hz
• High Frequency Response: 100 KHz
• Power Output /ch (8 ohm): 260
• Distortion (1 KHz, full power): 1%
• Input Impedance (SE & BAL Kohms): 50/100
• Damping Factor: 150
• Output Noise (uV): 200
• Current Draw @ Idle (Amps): 3.1
• Power Consumption (Watts): 375
• Temperature (deg C.): 53
• Number of Chassis: 1
• Unit Dimensions (W x D x H) (In.): 19 x 21.25 x 7.5
• Unit Weight (LBS): 88
